TDR 510 TIME DOMAIN REFLECTOMETER
TDR 510 TIME DOMAIN REFLECTOMETER

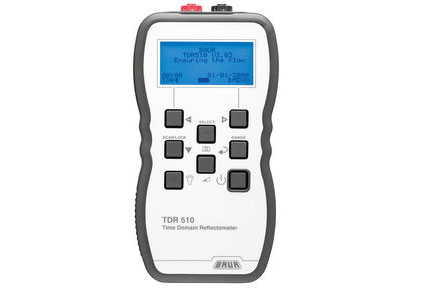

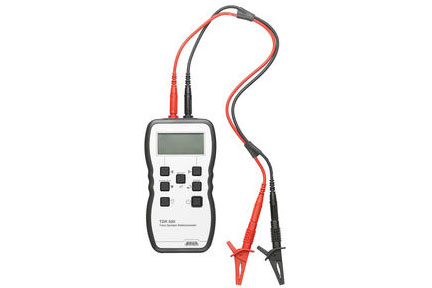

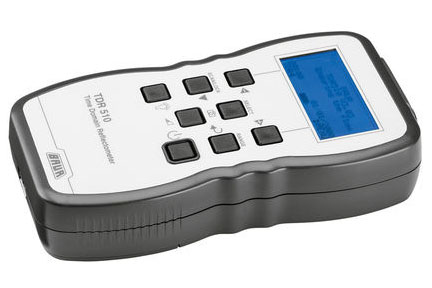

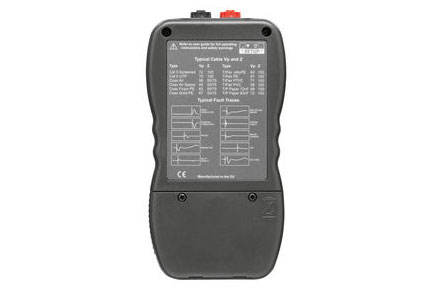

HANDHELD TIME DOMAIN REFLECTOMETER TDR 510
The BAUR handheld time domain reflectometer TDR 510 is used for fault location in all metal cables such as power cables, coaxial cables, data cables and communication cables. The BAUR TDR 510 comes with a device storage for 50 measurements and the option to compare the trace of an active TDR measurement with a stored trace.
- Configurable for various measurement ranges and cable types
- Standard-compliant, safe measurements on live cables through the measurement category CAT IV / 600 V
- Ideal for fault location in the area of telecommunication, video technology, data and security technology
